Secure NIAP 4.0 Certified KVM MultiViewer - 4-Port, Single-Monitor, DisplayPort, CAC

The Secure KVM Multiviewer allows displaying up to four secure DisplayPort computers on a single screen. Using a single set of keyboards and mice, operators can control all connected sources right from their desktops. Multiple modes such as Quad-View, T-Quad, and PiP, enable you to display the video from those four computers in a 4 x 4 matrix view on one monitor, all at the same time, and in real-time. The Secure KVM Multiviewer is the perfect solution for operators or analysts in defense or intelligence who need to access and control multiple sources with different security levels.

The multiviewer has isolated channels to ensure that data is not leaked between secure ports and the outside world. To prevent eavesdropping attempts through vulnerable devices, the multiviewer supports uni-directional data flow from computer to peripheral. Mechanical, electrical, and optical isolation stop hacking and data leaks in environments where security is critical. Plus, secure EDID learning prevents unwanted and unsecure data from being transmitted through DDC lines. The Secure KVM Multiviewer uses protected firmware to keep intruders from re-programming or reading the firmware. Keyboard/internal cache wiping and chassis intrusion protection provide even more security. The Secure KVM Multiviewer also uses anti-tamper switches and tamper-evident seals to shield your confidential data.

Why Secure KVM
The Secure KVM Multiviewer is designed for use in any application where sensitive data must be protected, including defense, government agencies, and intelligence. The multiviewer is NIAP PP 4.0 certified and equipped with the highest security features that meet today’s Information Assurance safe control standards. Unique hardware configurations prevent data leakage between PCs and connected peripherals, eliminating potential cyber threats.

Security Accreditation NIAP PP 4.0 Secure KVM
TAA compliant — YES

Video
Format: DisplayPort
One monitor with Quad View, second monitor with full page view
Resolution (Maximum): Up to 4K @ 30 Hz
DDC: 5 volts p-p (TTL) Link Training
Output Cable Length: Up to 6m.
Input Cable Length: Up to 6m.
Input Equalization: Automatic

Audio Yes

USB
Signal Type: USB 1.1 and 1.0 Keyboard and Mouse only
Emulation: USB 1.1 and USB 2.0 Compatible

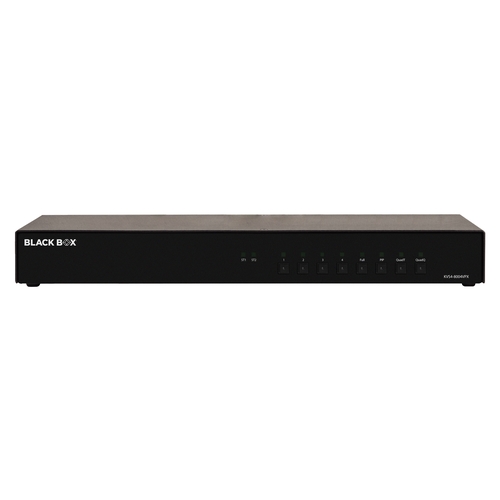

User Controls Front Panel Buttons
Emulation Keyboard, Mouse and Video

Power Requirements — 12V DC, 3A (minimum) power adapter with center-pin positive polarity.
Dimensions 1.76-in. H x 12.57-in. W x 6.69-in. D (4.47 x 31.9 x 16.99-cm)
Weight 4.2-lb. (1.91-kg)
Operating Temperature 32° to 104° F (0° to 40° C)
Storage Temperature -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing

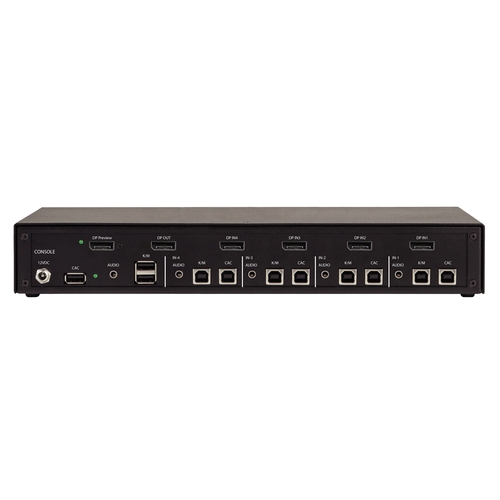

Connectors
Host Interface
(4) DisplayPort;
(4) USB Type-B;
(4) 3.5mm stereo audio female
(4) USB Type-B CAC;
User Console :
(2) Display Port;
(2) USB Type-A for keyboard and mouse connection only;
(1) 3.5mm stereo audio female
(1) USB Type-B CAC;
