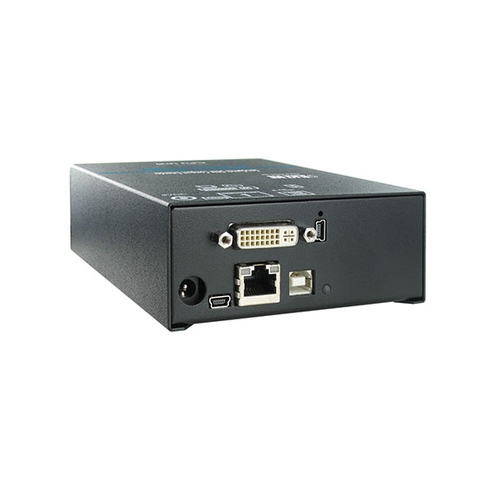

ACX1T-123-C: Transmitter, CATx (140m), (1) Single link DVI-D, 2x USB HID, 4x USB 2.0
Photo may vary from actual product
ACX1R-11-SM: Receiver, Fibre (MM:800m,SM:10km), (1) Single link DVI-D, 2x USB HID
ACX1R-22-C: Receiver, CATx (140m), Dual DVI-D, 4x USB HID
ACX1R-11-C: Receiver, CATx (140m), (1) Single link DVI-D, 2x USB HID
ACX1R-123HS-SM: Receiver, Fibre (MM:800m,SM:10km), (1) Single link DVI-D Highspeed, 2x USB HID, 4x USB 2.0
ACX1T-123HS-SM: Transmitter, Fibre (MM:800m,SM:10km), (1) Single link DVI-D Highspeed, 2x USB HID, 4x USB 2.0
ACX1T-22-SM: Transmitter, Fibre (MM:800m,SM:10km), Dual DVI-D, 4x USB HID
ACX1R-12A-C: Receiver, CATx (140m), (1) Single link DVI-D, 4x USB HID
ACX1T-11-C: Transmitter, CATx (140m), (1) Single link DVI-D, 2x USB HID
ACX1T-11HS-SM: Transmitter, Fibre (MM:800m,SM:10km), (1) Single link DVI-D Highspeed, 2x USB HID
ACX1T-11V-SM: Transmitter, Fibre (MM:800m,SM:10km), Single DVI/VGA, 2x USB HID
ACX1T-12A-SM: Transmitter, Fibre (MM:800m,SM:10km), (1) Single link DVI-D, 4x USB HID
ACX1R-123-C: Receiver, CATx (140m), (1) Single link DVI-D, 2x USB HID, 4x USB 2.0
ACX1T-123HS-SM: Transmitter, Fibre (MM:800m,SM:10km), (1) Single link DVI-D Highspeed, 2x USB HID, 4x USB 2.0
ACX1T-22-SM: Transmitter, Fibre (MM:800m,SM:10km), Dual DVI-D, 4x USB HID
ACX1T-12A-C: Transmitter, CATx (140m), (1) Single link DVI-D, 4x USB HID
ACX1R-12A-SM: Receiver, Fibre (MM:800m,SM:10km), (1) Single link DVI-D, 4x USB HID
ACX1R-12A-SM: Receiver, Fibre (MM:800m,SM:10km), (1) Single link DVI-D, 4x USB HID
ACX1R-14A-C: Receiver, CATx (140m), (1) Single link DVI-D, 2x USB HID, 2x 36 Mbps USB 2.0, RS232, audio
ACX1T-123-C: Transmitter, CATx (140m), (1) Single link DVI-D, 2x USB HID, 4x USB 2.0
ACX1T-22-C: Transmitter, CATx (140m), Dual DVI-D, 4x USB HID


DKM Compact Extender Units


Use these extender units with your DKM switching system and extend high-quality digital graphics, USB peripherals, audio and serial up to 10 km away


  • For use with ServSwitch DKM, DKM FX and DKM FXC digital cross point switching system.
  • Distances of up to 140m over CATx, 800m over multi-mode and 10km over single-mode.
  • Video resolution of 2048 x 1152 @ 60 Hz.
  • 24Bit color depth.
  • Single- or dual-head DVI-D plus options for VGA sources.
  • Optional fibre DVI high-speed models with 2.5 Gbps of video bandwidth for demanding applications.
  • USB HID keyboard/mouse interface with True USB Emulation supporting extended functions.
  • Options for analog and digital audio, serial and USB 2.0.
  • Local monitoring with separate splitter cable.
  • Compact housings in a space saving design.
  • Options for 19" and DIN-rail mounting.
  • Warranty: 2-years

  Product       Code   Unit price   Quantity
Receiver
CATx (140m)
(1) Single link DVI-D

2x USB HID
  DKM Compact
DKM Compact
  ACX1R-11-C
On request


4x USB HID
  DKM Compact
DKM Compact
  ACX1R-12A-C
On request


2x USB HID, 4x USB 2.0
  DKM Compact
DKM Compact
  ACX1R-123-C
On request


2x USB HID, 2x 36 Mbps USB 2.0, RS232, audio
  DKM Compact
DKM Compact
  ACX1R-14A-C
On request

Dual DVI-D

4x USB HID
  DKM Compact
DKM Compact
  ACX1R-22-C
On request

Fibre (MM:800m,SM:10km)
(1) Single link DVI-D

2x USB HID
  DKM Compact
DKM Compact
  ACX1R-11-SM
On request


4x USB HID
  DKM Compact
DKM Compact
  ACX1R-12A-SM
On request

(1) Single link DVI-D Highspeed

2x USB HID
  DKM Compact
DKM Compact
  ACX1R-11HS-SM
On request


2x USB HID, 4x USB 2.0
  DKM Compact
DKM Compact
  ACX1R-123HS-SM
On request

Dual DVI-D

4x USB HID
  DKM Compact
DKM Compact
  ACX1R-22-SM
On request

Transmitter
CATx (140m)
(1) Single link DVI-D

2x USB HID
  DKM Compact
DKM Compact
  ACX1T-11-C
On request


4x USB HID
  DKM Compact
DKM Compact
  ACX1T-12A-C
On request


2x USB HID, 4x USB 2.0
  DKM Compact
DKM Compact
  ACX1T-123-C
On request


2x USB HID, 2x 36 Mbps USB 2.0, RS232, audio
  DKM Compact
DKM Compact
  ACX1T-14A-C Last Time Buy
On request

Dual DVI-D

4x USB HID
  DKM Compact
DKM Compact
  ACX1T-22-C
On request

Fibre (MM:800m,SM:10km)
(1) Single link DVI-D

2x USB HID
  DKM Compact
DKM Compact
  ACX1T-11-SM
On request


4x USB HID
  DKM Compact
DKM Compact
  ACX1T-12A-SM
On request

(1) Single link DVI-D Highspeed

2x USB HID
  DKM Compact
DKM Compact
  ACX1T-11HS-SM
On request


2x USB HID, 4x USB 2.0
  DKM Compact
DKM Compact
  ACX1T-123HS-SM
On request

Single DVI/VGA

2x USB HID
  DKM Compact
DKM Compact
  ACX1T-11V-SM
On request

Dual DVI-D

4x USB HID
  DKM Compact
DKM Compact
  ACX1T-22-SM
On request

"Last Time Buy" indicated products will be discontinued once remaining stock is depleted. Please call our sales department for more information or alternative items. Use these extender units together with the ServSwitch DKM, ServSwicth DKM FX or ServSwitch DKM FXC. Please order a transmitter for each CPU connection and a receiver for each attached user console.

Accessories

  Product     Code   Unit price   Quantity

  Single Link DVI Splitter Cable - 2 Channel
Single Link DVI Splitter Cable
  ACXSPL12-S
On request
