Emerald PE – Powering the World’s Most Demanding Environments
Emerald PE transmitters and receivers deliver pixel-perfect HD video over standard IP networks. Operators get instant, seamless access to both physical and virtual systems with sub-second switching, flawless video, stereo audio, and transparent USB 2.0 support for mission-critical peripherals.
For administrators, Emerald provides centralized, secure management with flexible configuration and always-on reliability. Add the Boxilla Central Manager for enterprise-wide control, and you can scale from a single extender to hundreds or thousands of endpoints across buildings, campuses, or global networks - without forklift upgrades or costly new hardware.
Key Capabilities:
Scalable by Design
Start small - as extenders or a local switchable matrix - and expand into a fully managed enterprise control (KVM) system with Boxilla. Emerald grows with your control room.
Enterprise Access, instantly
Switch between sources in under half a second across your entire enterprise - buildings, campuses, or WAN - using existing IP infrastructure. Connection folders simplify management across the ecosystem.
Outstanding Video, Lossless Quality
Emerald PE delivers pixel-perfect HD DP/DVI video resolutions up to 1920 x 1080 over copper or fiber IP networks with mathematically lossless compression. Start with HD today (Interchangeable with Emerald 4K, SE) and migrate to 4K at your own pace.
Virtualization Made Simple
Seamlessly access VMware, Microsoft, and Citrix environments using RDP, RemoteFX, and PCoIP. No extra hardware. No training curve. Just full control.
Fail-Safe Operation
Dual network ports and flexible copper/fiber SFP+ connectivity deliver always-on resilience. Even if one link fails, operations stay uninterrupted.
Standards-Based Networking
Emerald runs on standard IEEE 802.3 Ethernet switches - Gigabit for HD, 10G for 4K, with 100G uplinks for large deployments. Built with proven, standards-based hardware from Black Box or your existing infrastructure.
Emerald Works with Your Entire Black Box Ecosystem
Seamlessly integrate with DKM matrix switching, Freedom II KM switches, ControlBridge room control, and Boxilla centralized management - giving you one unified platform for KVM, AV, and room automation.
Storage Temperature -4ºF to 140ºF (-20ºC to 60ºC)
Humidity 5 to 95%, noncondensing
Operating Temperature 32ºF to 95ºF (0ºC to 35ºC)
General
OSD Supported PrtScrn, O (default)
Computer Interface Display Port cable, USB Type A to B cable, 3.5mm Audio cable
Hotkey Support PrtScrn (default)
Encryption Secure Sockets Layer (SSL) over a TCP/IP, 128 bit between TX and RX, user set between RX and Hyper-V
Leads Supported Display Port Video, USB Keyboard, Mouse and Peripherals, Audio
PC Selection Point to Point: no interface, always connected
Matrix: Hotkeys (hotkeys can be adjusted in Boxilla)
DDC Support Built in, Cloned from RX
Item Specifications

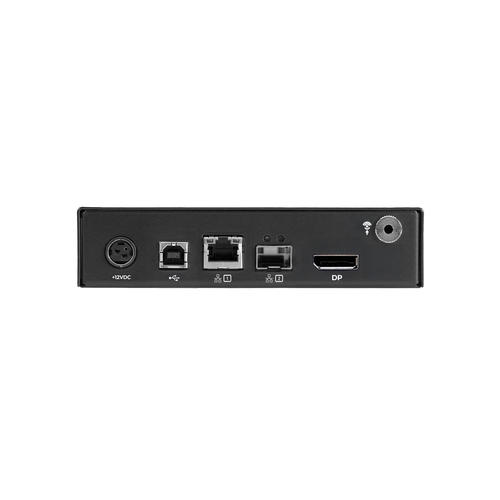

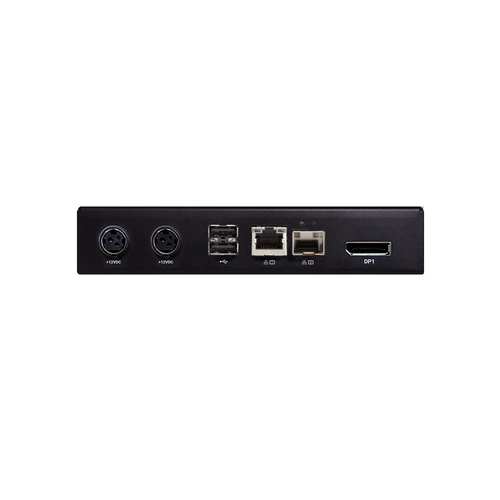

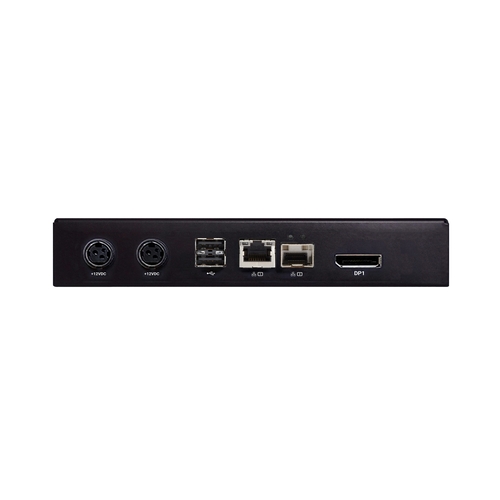

Connectors (1) DisplayPort Input; (1) USB Type-B; (1) RJ45 Network; (1) 3.5mm Audio; (1) SFP Cage; (1) Snap and Lock Power Connector; (1) Micro USB Connector
Dimensions 5.39"W x 6.07"D x 1.32"H (137 x 154.2 x 33.6mm)

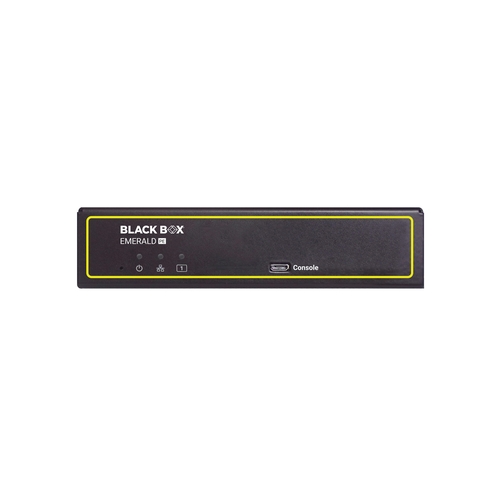

Indicators (1) Power LED
(1) Network LED
(1) Video 1 Status LED
(2) Network Interface Status LEDs, RJ45 (Link / Activity)
(2) Network Interface Status LEDs, SFP (Link / Activity)
Weight 0.77 lb. (350g)
Physical
Operating Systems Supported Microsoft Windows 7, 8, 8.1, 10, 11, Server 2003, Server 2008, Server 2012, Server 2019, Linux, Solaris, Mac OS
Distance from Transmitter to Receiver (max.) 328 ft. (100 m), use a network switch to get farther distances
Distance from CPU to Transmitter (max.) 16 ft. (5 m) maximum distance from DisplayPort cable to CPU
Power
Input 100-240 VAC, 50/60 Hz, 1 AMP Max
Power Supply Type IEC320, C14, 5-feet
TAA compliant — YES
EMD2000PE-DP-T
(1) Emerald PE DisplayPort Single-Head Transmitter
(1) Power Supply
(1) Power Cord
(1) USB Type A to B, M/M
(1) Display Port Cables, M/M
(1) Insert to reference BlackBox.com for resources

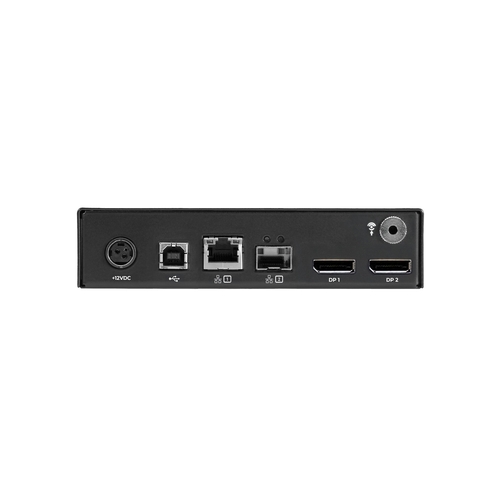

EMD2002PE-DP-T

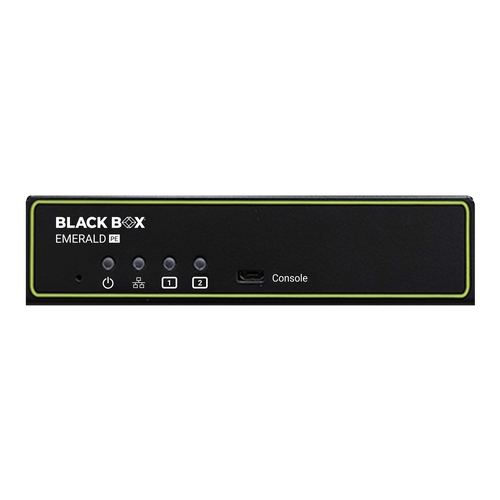

(1) Emerald PE DisplayPort Dual-Head Transmitter
(1) Power Supply
(1) Power Cord
(1) USB Type A to B, M/M
(2) Display Port Cables, M/M
(1) Insert to reference BlackBox.com for resources
|
