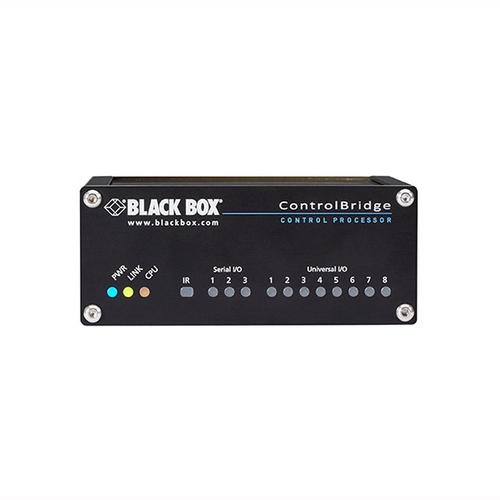

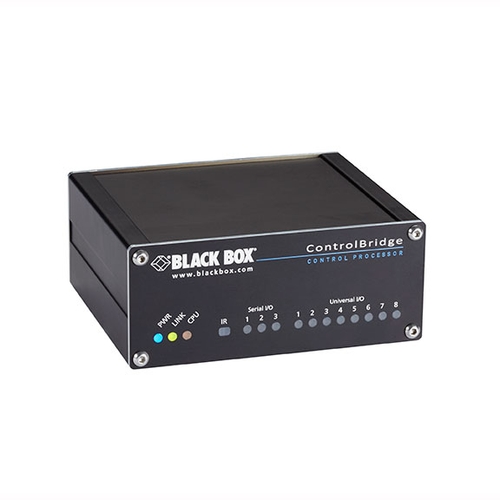

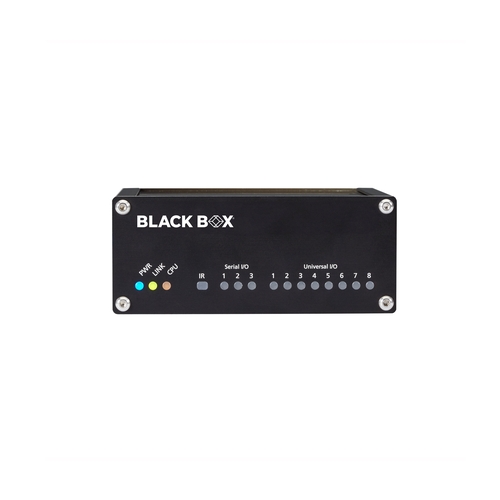

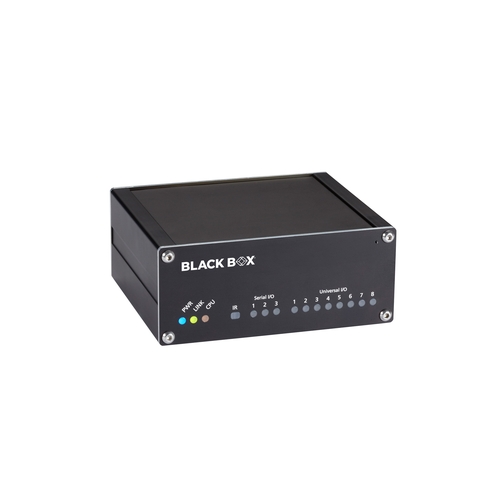

The ControlBridge Processor is a compact, IP-based control unit engineered for total automation in AV, room, and facility environments. With eight versatile I/O ports and three bi-directional RS-232/485 ports, it offers flexible integration with both modern IP-enabled and legacy serial devices. Fully compatible with all ControlBridge touch panels and capable of operating as a standalone device, it delivers intelligent control and real-time scheduling through its onboard RTC (Real-Time Clock).
Designed for simplified deployment, the processor supports Power over Ethernet (PoE), allowing a single Ethernet cable to deliver both data and power. Setup is fast and intuitive with an integrated web server, enabling configuration through any standard browser. Programming is handled via ControlBridge BuilderSoftware, giving integrators the flexibility to create customized control workflows with ease. Whether mounted on a tabletop or in a 19” rack, the ControlBridge Processor is a reliable core of any professional automation system.
Wired 10/100Base-T Ethernet— 1
RAM/Non-volatile Flash— 64 MB/256 MB RAM: LPDDR 256 MB, Flash 256 MB
Bidirectional Serial RS-232/485— 3
Versatile I/O Ports— 8
Approvals— Power Supply: IEEE 802.3af; CE, FCC, RoHS
IR Receivers— 1 (for capture)
Enclosure— Aluminum
Power— 24 VDC power supply, maximum 4 W, PoE, IEEE 802.3af Class 0
Storage Temperature— 32° F to 140° F (0° to 60° C)
Connectors—

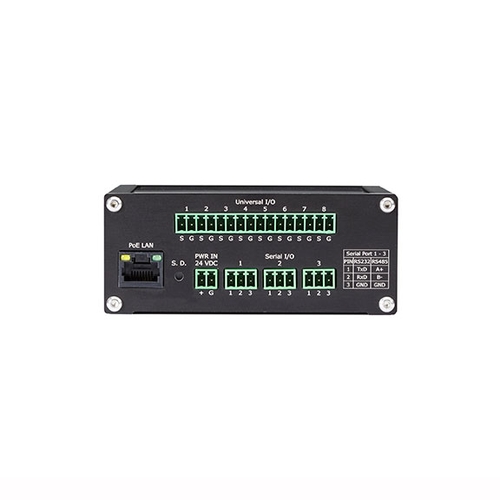

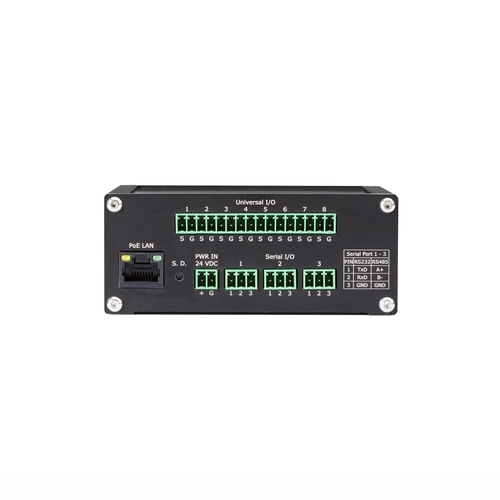

Network: RJ45; Control Ports: Phoenix 3.5 mm: (3) Bidirectional Serial RS-232/422/485 3-pin; (8) Versatile, 2-pin, Input protected to 30 VDC
Country of Origin— Czech Republic
Dimensions— 1.7-in. H x 4.1-in. W x 3.6-in. D (4.3 x 10.5 x 9.2-cm)
Indicators— LEDs: PWR, Link, CPU, (3) Serial, (8) Versatile
Weight— 0.7-lb. (0.318-kg)
(1) ControlBridge 100 Series Processor
(2) IR Adapters
(1) Connector Set (Phoenix Connectors for I/O)
(1) Ethernet Cable
(1) PoE Adapter plus Power Cable
(1) 24 VDC Power Supply with International Clips
