LBPS310A-KIT
Photo may vary from actual product

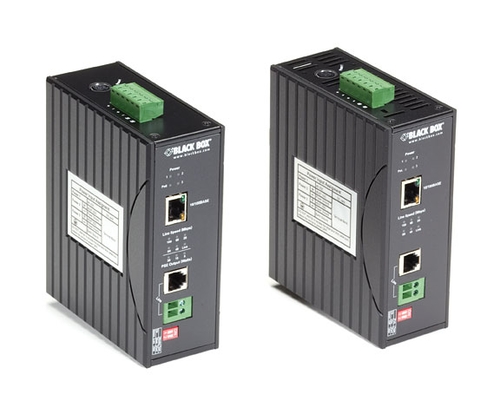

Hardened Power-over-Line (PoL) PoE Ethernet Extender Kit
Hardened Power-over-Line (PoL) PoE Ethernet Extender Kit
Hardened Power-over-Line (PoL) PoE Ethernet Extender Kit


Hardened Power-over-Line (PoL) PoE Ethernet Extender Kit


Power PoE PD devices such as IP cameras and wireless access points—even in harsh conditions.


  • Provides high-powered 802.3at PoE over one pair of voice-grade UTP.
  • Extends Power over Ethernet up to 1.2 kilometers and Ethernet up to 2.2 kilometers.
  • Kit includes both a local and a remote unit.
  • Transparent to data.
  • Hardened for industrial use with a tough aluminum case and an extended temperature range of -40 to 75° C.
  • Autosensing, autonegotiating 10-/100-Mbps Ethernet port with Auto MDI/MDI-X.

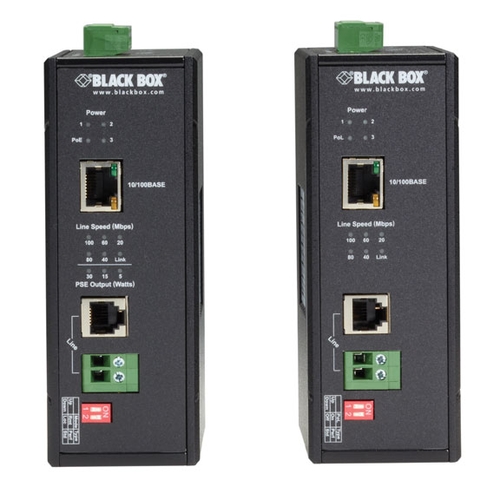

  • Six speeds with speed indicator LEDs.

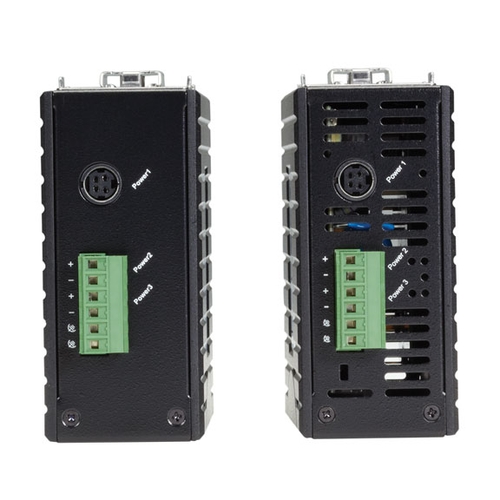

  • Powered through a 48-VDC terminal block or a 48-VDC jack. Order power supplies separately(SDR-120-48).

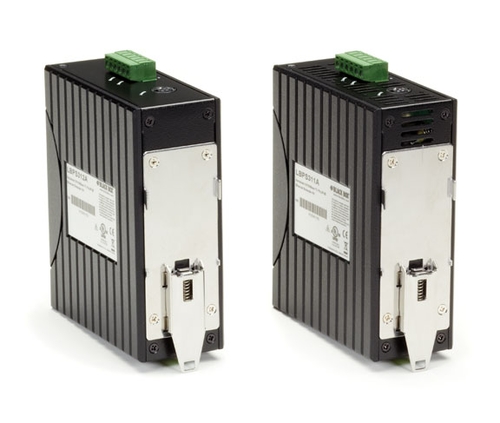

  • Supports DIN rail, panel, and rackmount installations.
  • Warranty: 2-years

  Product       Code   Unit price   Quantity


Hardened Power-over-Line (PoL) PoE Ethernet Extender Kit

Hardened Power-over-Line (PoL) PoE Ethernet Extender Kit
  LBPS310A-KIT
On request

NOTE: The LBPS310A-KIT does not come with a power supply. Order the DIN Rail Power Supply, 120 Watts, 48 VDC (SDR-120-48) separately.

Accessories

  Product     Code   Unit price   Quantity

  DIN Rail Power Supplies - 48VDC, 120w
DIN Rail Power Supplies
  SDR-120-48
On request

  DIN Rail Power Supplies - 48VDC, 240w
DIN Rail Power Supplies
  SDR-240-48
On request

  DIN Rail Power Supplies - 24VDC, 120w
DIN Rail Power Supplies
  SDR-120-24
On request
