DKM FXC, KVM Matrix Switch
Photo may vary from actual product

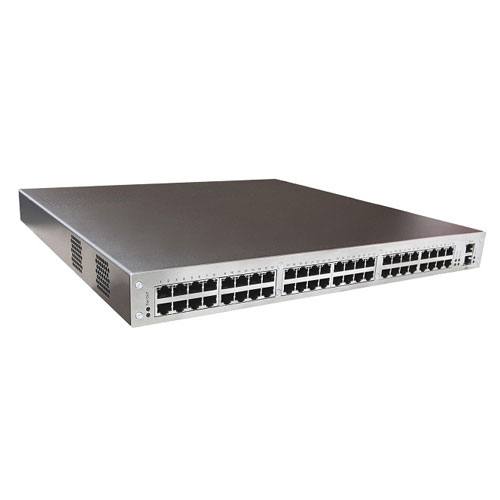

ACXC16: CATx, 16 port, Standard usage

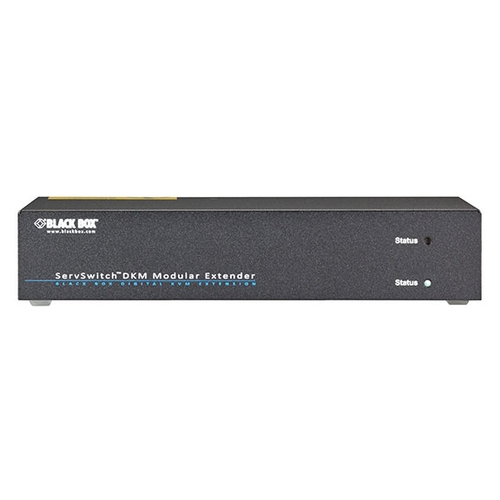

ACXC8FHS: Fibre High Speed, 8 ports, Standard usage

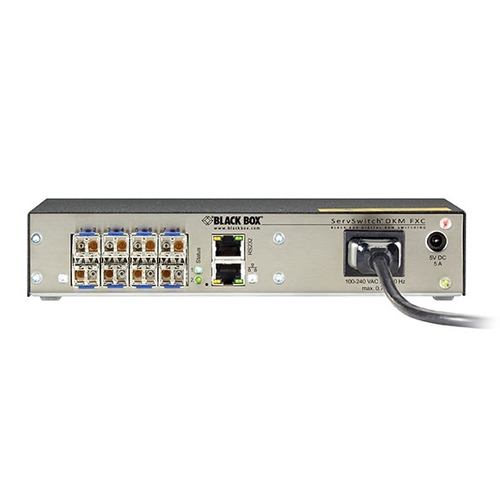

ACXC8FHS: Fibre High Speed, 8 ports, Standard usage

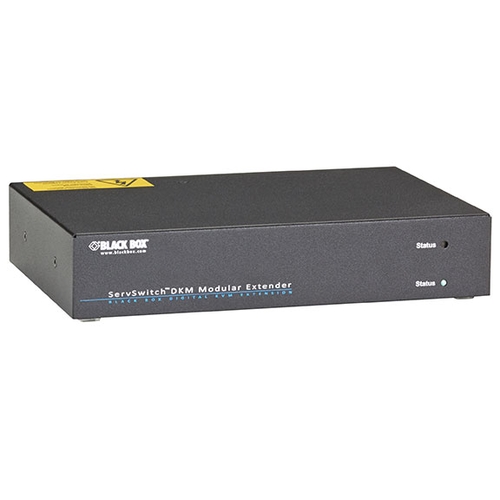

ACXC8FHS: Fibre High Speed, 8 ports, Standard usage


DKM FXC, KVM Matrix Switch


High end KVM switching in a compact 1U/2U design


  • KVM cross point switch available with 8, 16-, 32- or 48-, 64- or 80-ports.
  • Space saving compact chassis with up to 48 ports in 1U or 64/80 ports in 2U.
  • High performance instant switching.
  • Supports high-quality, full-frame digital video.
  • Wide range of peripheral interfaces like USB HID, USB 2.0, analog and digital audio plus serial.
  • Each port can be either input or output, regardless of position in rack and even on each board.
  • Rectangular switching system from 1 user to 79 CPUs up to 79 users to 1 CPU.
  • High availability with redundant power supply (except 8-Port versions).
  • Uses fixed configuration for CATx cabling only, fiber cabling only, or 48 CATx ports with 16 or 32 Fiber ports.
  • Connect user and CPUs via the latest DKM Extenders over distances end-to-end up to 280m over CATx, 2000m over multimode or 20 km over single mode fiber.
  • Switches are available in CATx, fiber (1-Gbps), high-speed fiber (3-Gbps) or combinations. Or choose the 6G universal switches for USB 3.0 and SDI signals.
  • Integrates into Modular DKM FX systems seamlessly via cascade option.
  • Warranty: 2-years

  Product       Code   Unit price   Quantity
CATx
16 port

Standard usage
  DKM FXC, KVM Matrix Switch
DKM FXC, KVM Matrix Switch
  ACXC16
On request

Fibre High Speed
8 ports

Standard usage
  DKM FXC, KVM Matrix Switch
DKM FXC, KVM Matrix Switch
  ACXC8FHS
On request

Please use a DKM Transmitter to connect a CPU and a DKM Receiver to connect a user station to the Switch.

Note1: Please order the SFP transceivers for the ACXC8U model separately.
Note2: The 16, 32, and 48-port versions are end of life and only available as long as stock lasts. They replaced with the newer, large selection of DKM Compact II Switches, see alternative solution below.
8-port models continue to sell without any changes.

Accessories

  Product     Code   Unit price   Quantity

  DKM Compact - Receiver, CATx (140m), (1) Single link DVI-D, 2x USB HID, 4x USB 2.0
DKM Compact
  ACX1R-123-C
On request

  DKM Compact - Receiver, Fibre (MM:800m,SM:10km), (1) Single link DVI-D Highspeed, 2x USB HID, 4x USB 2.0
DKM Compact
  ACX1R-123HS-SM
On request

  DKM Compact - Transmitter, CATx (140m), (1) Single link DVI-D, 2x USB HID, 4x USB 2.0
DKM Compact
  ACX1T-123-C
On request

  DKM Compact - Transmitter, Fibre (MM:800m,SM:10km), (1) Single link DVI-D Highspeed, 2x USB HID, 4x USB 2.0
DKM Compact
  ACX1T-123HS-SM
On request

  DKM Compact - Receiver, CATx (140m), (1) Single link DVI-D, 2x USB HID
DKM Compact
  ACX1R-11-C
On request

  DKM Compact - Receiver, Fibre (MM:800m,SM:10km), (1) Single link DVI-D, 2x USB HID
DKM Compact
  ACX1R-11-SM
On request

  DKM Compact - Receiver, Fibre (MM:800m,SM:10km), (1) Single link DVI-D Highspeed, 2x USB HID
DKM Compact
  ACX1R-11HS-SM
On request

  DKM Compact - Receiver, CATx (140m), (1) Single link DVI-D, 4x USB HID
DKM Compact
  ACX1R-12A-C
On request

  DKM Compact - Receiver, Fibre (MM:800m,SM:10km), (1) Single link DVI-D, 4x USB HID
DKM Compact
  ACX1R-12A-SM
On request

  DKM Compact - Receiver, CATx (140m), (1) Single link DVI-D, 2x USB HID, 2x 36 Mbps USB 2.0, RS232, audio
DKM Compact
  ACX1R-14A-C
On request

  DKM Compact - Receiver, CATx (140m), Dual DVI-D, 4x USB HID
DKM Compact
  ACX1R-22-C
On request

  DKM Compact - Receiver, Fibre (MM:800m,SM:10km), Dual DVI-D, 4x USB HID
DKM Compact
  ACX1R-22-SM
On request

  DKM Compact - Transmitter, CATx (140m), (1) Single link DVI-D, 2x USB HID
DKM Compact
  ACX1T-11-C
On request

  DKM Compact - Transmitter, Fibre (MM:800m,SM:10km), (1) Single link DVI-D, 2x USB HID
DKM Compact
  ACX1T-11-SM
On request

  DKM Compact - Transmitter, Fibre (MM:800m,SM:10km), (1) Single link DVI-D Highspeed, 2x USB HID
DKM Compact
  ACX1T-11HS-SM
On request

  DKM Compact - Transmitter, CATx (140m), Single DVI/VGA, 2x USB HID
DKM Compact
  ACX1T-11V-C
On request

  DKM Compact - Transmitter, Fibre (MM:800m,SM:10km), Single DVI/VGA, 2x USB HID
DKM Compact
  ACX1T-11V-SM
On request

  DKM Compact - Transmitter, Fibre (MM:800m,SM:10km), (1) Single link DVI/VGA 2.5Gbps, 2x USB HID
DKM Compact
  ACX1T-11VHS-SM
On request

  DKM Compact - Transmitter, CATx (140m), (1) Single link DVI-D, 4x USB HID
DKM Compact
  ACX1T-12A-C
On request

  DKM Compact - Transmitter, Fibre (MM:800m,SM:10km), (1) Single link DVI-D, 4x USB HID
DKM Compact
  ACX1T-12A-SM
On request

  DKM Compact - Transmitter, Fibre (MM:800m,SM:10km), (1) Single link DVI-D, 4x USB HID, digital audio
DKM Compact
  ACX1T-12D-SM
On request

  DKM Compact - Transmitter, CATx (140m), (1) Single link DVI-D, 2x USB HID, 2x 36 Mbps USB 2.0, RS232, audio
DKM Compact
  ACX1T-14A-C
On request

  DKM Compact - Transmitter, CATx (140m), Dual DVI-D, 4x USB HID
DKM Compact
  ACX1T-22-C
On request

  DKM Compact - Transmitter, Fibre (MM:800m,SM:10km), Dual DVI-D, 4x USB HID
DKM Compact
  ACX1T-22-SM
On request

  DKM Compact - Transmitter, Fibre (MM:800m,SM:10km), (1) Dual DVI-D 2.5Gbps, 4x USB HID
DKM Compact
  ACX1T-22HS-SM
On request

  DKM FX Repeater Module - CATx, Repeater, 2 Links
DKM FX Repeater Module
  ACX1M-2C2C
On request

  DKM FX Repeater Module - Fibre, Repeater, 1 Link
DKM FX Repeater Module
  ACX1M-SS
On request

  DKM FX Repeater Module - Fibre, Repeater, 2 Links
DKM FX Repeater Module
  ACX1M-2S2S
On request

  DKM FX Repeater Module - CATx & Fiber, Cross Repeater, 1 Link
DKM FX Repeater Module
  ACX1M-CS
On request

  DKM FX Repeater Module - CATx & Fiber, Cross Repeater, 2 Links
DKM FX Repeater Module
  ACX1M-2C2S
On request
